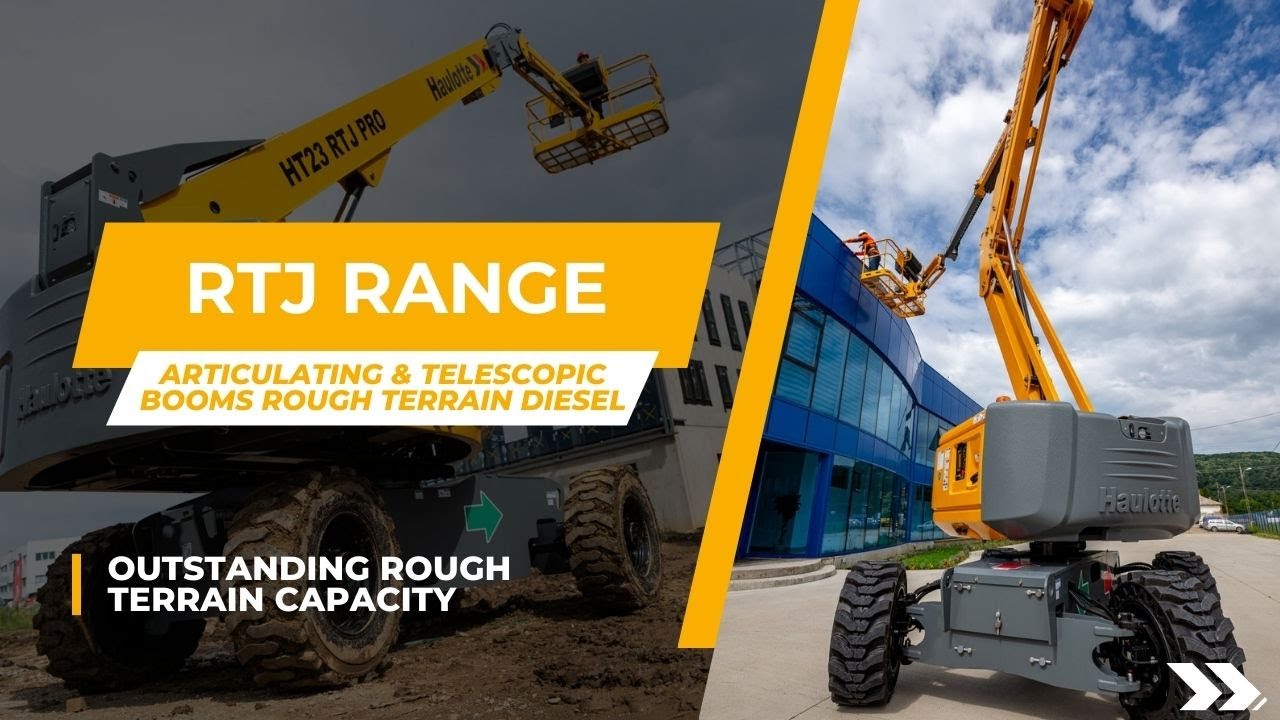

Diesel Articulating Boom Lift

Platform Height: 39.5 m

Key Specs & Features

  • Performance & ease of use
  • Continuous outreach control
  • Outstanding rough terrain driving features: 4 wheel drive and steer, oscillating axle
  • Up to 4 simultaneous, proportional movements
  • Optimized serviceability
  • Exclusive modular basket easy and quick to repair
  • Easy access to all components
  • Self-diagnosis tool integrated on the lower control box
  • Best safety feeling
  • Haulotte Activ’Shield™ Bar
  • The smallest turning radius on the market

Specs Overview

Technical Data
Working height41.5 m
Platform height39.5 m
Horizontal outreach20.1 m
Up and over clearance17.5 m
Lift capacity230 kg
Platform size2.44 x 0.91 m
Length - stowed13.1 m
Width2.5 m
Height - stowed2.99 m
Vertical jib rotation140° (+70°/-70°)
Platform rotation180° (+90°/-90°)
Turntable rotation360 ° continuous
Tailswing3.88 m
Wheelbase3.5 m
Ground clearance38 cm
Tilt4 °
Drive speed0.5 - 5 km/h
Gradeability40 %
Tires - foam-filled445/65-22.5
Power sourceTIER 3:PERKINS 55.5 kW (EU) / 62.4 kW (ROW) TIER 4: DEUTZ 55 kW
Weight23 900 kg
Transport length11 m
Transport height3.73 m
Width - with extended axles3.3 m
Transport height3.75 m
Below ground reach1.5 m
Turning radius - outside axle extended5.74 m
Standard Equipment
  • Front oscillating axle increasing stability on uneven ground
  • 4 wheel drive and steer
  • 2 extendable axles
  • Differential wheel lock increasing rough terrain capacity
  • Proportional controls enhancing comfort and safety
  • 4 simultaneous mouvements for highest productivity
  • 230 kg / 500 lbs (2 persons) load capacity unrestricted working envelope
  • Common modular large platform with drop bar entry gate
  • Upper control box protection cover and tool tray in plastic ultra-solid
  • Power to platform 110V / 220 V (female plug in the basket)
  • Hydrostatic transmission
  • Safe to use in winds up to 45km/h – 28 mph
  • Sound and light alarm for tilt and load
  • Electric pump system and emergency descent controls upper control box
  • 12 V battery
  • Towing hooks
  • Hourmeter
  • Low fuel level indicator (upper control box)
  • Engine pre-heater with light indicator
  • Basket compensation +/-10°
  • Travel alarm
  • Driving beacon
  • Enhanced Swing out engine tray for ease of maintenance
  • Haulotte Activ’Shield™ Bar (for Europe)
Main Options
  • On-board hydraulic 3.5 kW generator
  • Hydraulic oil cooler
  • Hydraulic oil in tank and circuit for warm countries
  • Biodegradable hydraulic oil
  • Automatic Overspeed Air Shutdown Valve (Electric one-way valve, flame arrestor, spark arrestor)
  • Cold weather kit
  • Air line to platform
  • Cap with key for diesel tank
  • 55 W Platform working light
  • Glazier Pack
  • Pipe cradle pack
  • Lateral swing door gate
  • Haulotte Activ’Shield™ Bar (outside Europe)
